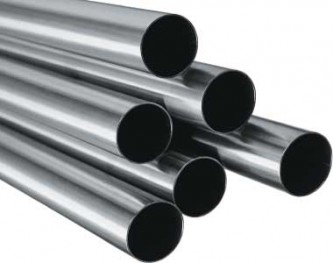

Nerezové rúry

Zvárané rúrky vyrábané podľa normy DIN 17457, DIN 2463, zvar V=1,0, tolerancia podľa DIN EN ISO 1127, D3/T3 od rozmeru 114,3 D2 /T 3 dodávame s atestom EN 10204/3.1 B.

Rúrky sú pozdĺžne zvárané s povrchovou úpravou kartáčovaním, morením a leštením. Dĺžka rúrok je 6 m.

Rozmer [mm]	kg/m	Rozmer [mm]	kg/m
4,00x1,00	0,075	14,00x2,00	0,601
5,00x0,50	0,056	14,00x2,50	0,720
5,00x1,00	0,100	14,00x3,00	0,826
6,00x0,50	0,070	15,00x1,00	0,351
6,00x1,00	0,125	15,00x1,50	0,507
6,00x1,50	0,169	15,00x2,00	0,651
6,00x2,00	0,200	15,00x2,50	0,783
7,00x1,00	0,150	15,00x3,00	0,901
8,00x0,50	0,094	15,00x4,00	1,102
8,00x1,00	0,175	16,00x1,00	0,376
8,00x1,50	0,244	16,00x1,50	0,545
8,00x2,00	0,300	16,00x2,00	0,701
8,00x2,50	0,485	16,00x2,50	0,845
9,00x1,50	0,282	16,00x3,00	0,977
9,00x2,50	0,407	16,00x4,00	1,202
10,00x0,50	0,119	17,00x1,00	0,401
10,00x1,00	0,225	17,00x3,00	1,052
10,00x1,50	0,319	17,00x3,20	1,117
10,00x2,00	0,401	17,20x1,00	0,406
10,00x2,50	0,470	17,20x1,60	0,625
10,20x1,60	0,345	17,20x1,80	0,694
1/8" 2,00	0,411	17,20x2,00	0,761
11,00x1,00	0,250	3/8" 2,30	0,858
11,00x1,50	0,357	3/8" 2,35	0,874
11,00x2,00	0,451	3/8" 2,90	1,038
11,00x2,50	0,532	18,00x1,00	0,426
12,00x0,50	0,143	18,00x1,50	0,620
12,00x1,00	0,275	18,00x2,00	0,801
12,00x1,50	0,394	18,00x2,50	0,970
12,00x2,00	0,501	18,00x3,00	1,127
12,00x2,50	0,595	18,00x4,50	1,520
12,00x2,90	0,661	19,00x3,00	1,200
12,00x3,00	0,676	19,00x3,50	1,358
13,00x0,50	0,157	20,00x1,00	0,476
13,00x1,00	0,300	20,00x1,25	0,587
13,00x1,50	0,432	20,00x1,50	0,695
13,00x2,00	0,657	20,00x2,00	0,901
13,50x1,60	0,477	20,00x2,50	1,096
13,50x1,80	0,527	20,00x3,00	1,277
13,50x2,00	0,576	20,00x5,00	1,878
13,50x2,30	0,645	21,30x1,60	0,812
1/4" 2,35	0,656	21,30x2,00	0,967
1/4" 2,60	0,710	1/2" 2,60	1,220
1/4" 2,90	0,770	1/2" 2,65	1,217
14,00x0,50	0,168	1/2" 3,05	1,390
14,00x1,00	0,326	1/2" 3,25	1,470
14,00x1,50	0,470	21,34x2,77	1,288
21,34x3,73	1,645	30,00x5,00	3,130
21,34x4,78	1,980	31,75x3,17	2,704
22,00x1,00	0,526	31,80x1,60	1,210
22,00x1,50	0,770	31,80x2,60	1,956
22,00x2,00	1,002	32,00x1,00	0,776
22,00x2,50	1,221	32,00x1,50	1,146
22,00x3,00	1,427	32,00x2,00	1,502
22,00x3,50	1,620	32,00x2,50	1,847
23,00x1,00	0,551	32,00x3,00	2,178
23,00x1,50	0,808	32,00x3,50	2,498
24,00x1,00	0,576	32,00x6,00	4,270
24,00x1,50	0,845	32,00x8,00	5,260
24,00x2,00	1,102	33,00x1,50	1,183
25,00x1,00	0,601	33,40x2,77	2,125
25,00x1,50	0,883	33,40x3,38	2,541
25,00x1,60	0,965	33,40x4,55	3,287
25,00x2,00	1,152	33,70x1,60	1,324
25,00x2,50	1,409	33,70x2,00	1,588
25,00x3,00	1,653	33,70x2,60	2,030
25,00x4,00	2,103	33,70x2,90	2,237
25,00x5,00	2,504	1" 3,20	2,444
25,40x2,90	1,640	1" 3,60	2,710
26,00x1,50	0,921	1" 4,05	2,975
26,00x2,00	1,200	1" 5,00	3,600
26,67x2,11	1,298	34,00x1,00	0,826
26,67x2,87	1,710	34,00x1,50	1,221
26,27x3,91	2,228	34,00x2,00	1,603
26,90x1,60	1,043	34,00x2,60	2,710
26,90x2,00	1,247	34,00x4,00	3,005
26,90x2,30	1,417	35,00x1,00	0,852
3/4" 2,60	1,582	35,00x1,50	1,258
3/4" 2,65	1,610	35,00x2,00	1,653
3/4" 3,20	1,899	35,00x2,50	2,035
3/4" 3,25	1,930	35,00x5,00	3,756
27,00x4,00	2,304	36,00x1,00	0,876
28,00x1,00	0,676	36,00x2,00	1,703
28,00x1,50	0,995	36,00x5,50	4,590
28,00x2,00	1,302	36,00x8,00	6,130
28,00x2,50	1,596	36,00x10,00	7,120
28,00x3,00	1,878	38,00x1,00	0,926
28,00x3,50	2,147	38,00x1,50	1,371
28,00x4,00	2,404	38,00x2,00	1,803
28,00x5,00	2,880	38,00x2,60	2,310
30,00x1,00	0,726	38,00x3,20	2,790
30,00x1,50	1,070	38,00x4,00	3,606
30,00x2,00	1,402	38,00x5,00	4,132
30,00x2,50	1,784	38,00x6,00	4,810
30,00x2,6	1,790	40,00x1,00	0,977
30,00x3,00	2,028	40,00x1,50	1,446
30,00x4,00	2,604	40,00x2,00	1,903
40,00x2,50	2,348	50,00x5,00	5,634
40,00x3,00	2,779	50,00x7,00	8,240
40,00x3,50	3,200	50,00x9,00	10,100
40,00x5,00	4,382	50,00x12,50	12,830
40,00x6,00	5,580	51,00x1,50	1,859
40,00x7,50	6,670	51,00x2,00	2,454
40,00x10,00	8,210	51,00x2,60	3,151
42,00x2,00	2,003	51,00x4,00	4,708
42,00x3,00	2,930	52,00x1,00	1,277
42,16x2,77	2,732	52,00x1,50	1,897
42,20x4,85	4,540	52,00x2,00	2,504
42,40x1,60	1,684	53,00x1,50	1,934
42,40x2,00	2,023	54,00x1,50	1,972
42,40x2,60	2,591	54,00x2,00	2,604
11/4" 3,20	3,141	56,00x8,00	10,510
11/4" 3,25	3,190	56,00x10,00	12,590
11/4" 4,05	3,846	56,00x14,00	16,100
11/4" 5,00	4,680	57,00x1,50	2,085
43,00x1,50	1,559	57,00x2,00	2,754
44,00x2,00	2,103	57,00x2,50	3,412
44,50x1,50	1,719	57,00x2,60	3,542
44,50x2,00	2,128	57,00x2,90	3,929
44,50x2,60	2,728	57,00x3,00	4,060
44,50x2,90	3,021	57,00x3,60	4,820
44,50x4,00	4,056	57,00x4,00	5,308
45,00x1,00	1,102	60,30x1,60	2,423
45,00x1,50	1,633	60,30x2,00	2,920
45,00x2,00	2,153	60,30x2,60	3,757
45,00x3,00	3,337	60,30x2,77	4,168
45,00x6,50	6,850	60,30x2,90	4,212
45,00x8,50	8,490	60,30x3,20	4,575
45,00x12,50	11,120	2" 3,60	5,111
48,26x2,77	3,155	2" 3,65	5,180
48,26x3,68	4,108	2" 4,00	5,639
48,26x5,08	5,493	2" 4,50	6,288
48,30x1,60	1,927	2" 5,00	6,924
48,30x2,00	2,319	60,33x2,77	3,990
48,30x2,60	2,975	60,33x3,91	5,530
48,30x2,90	3,297	60,33x5,54	7,600
11/2" 3,20	3,614	63,00x6,50	10,050
11/2" 3,25	3,670	63,00x11,50	16,210
11/2" 3,60	4,029	63,00x13,50	18,290
11/2" 4,00	4,421	63,00x15,50	20,150
11/2" 4,05	4,437	63,50x1,60	2,555
11/2" 4,50	4,940	63,50x2,00	3,080
50,00x1,00	1,227	63,50x2,60	3,965
50,00x1,50	1,822	63,50x4,00	5,960
50,00x2,00	2,404	64,00x2,00	3,105
50,00x2,50	2,974	65,00x2,50	3,913
50,00x3,00	3,531	70,00x1,50	2,573
70,00x2,00	3,405	88,90x2,60	5,618
70,00x2,60	4,785	88,90x3,05	6,557
70,00x2,90	5,315	88,90x3,20	6,867
70,00x3,00	5,040	88,90x3,60	7,689
70,00x4,00	7,222	88,90x4,05	8,504
70,00x6,00	8,138	88,90x4,50	9,510
71,00x7,50	13,040	88,90x5,00	10,504
71,00x13,00	20,640	88,90x5,49	11,466
71,00x15,50	23,550	88,90x6,30	13,030
71,00x17,50	25,630	88,90x7,62	15,509
73,03x3,05	5,350	88,90x8,00	16,210
73,03x5,16	8,770	88,90x11,13	21,680
73,03x7,01	11,590	90,00x9,50	20,930
75,00x17,50	27,540	90,00x13,50	28,270
76,00x3,00	5,490	90,00x17,00	33,970
76,10x1,20	2,250	90,00x20,00	38,320
76,10x2,00	3,711	95,00x1,50	5,191
76,10x2,60	4,785	95,00x4,00	9,315
76,10x2,90	5,315	95,00x14,00	31,040
76,10x3,00	5,490	95,00x18,00	37,940
76,10x3,20	5,840	95,00x22,50	44,650
76,10x3,60	6,540	100,00x10,00	24,640
76,10x3,65	6,620	100,00x12,50	29,940
76,10x4,00	7,222	100,00x14,50	33,940
76,10x4,50	8,070	100,00x18,50	41,270
76,10x5,00	8,910	100,00x22,00	46,970
76,10x6,30	11,020	101,60x2,00	4,988
76,10x8,00	13,650	101,60x2,11	5,256
76,10x12,50	19,920	101,60x3,05	7,257
80,00x1,50	2,948	101,60x3,60	8,834
80,00x2,00	3,906	101,60x4,05	9,776
80,00x2,50	4,852	101,60x5,00	12,094
80,00x8,50	16,640	101,60x5,74	13,778
80,00x12,00	22,340	103,00x1,50	3,812
80,00x15,00	26,690	104,00x2,00	5,108
80,00x17,50	29,940	105,00x2,50	6,417
80,00x20,00	32,850	106,00x13,00	33,090
82,50x2,60	5,200	106,00x17,50	42,390
82,50x4,00	7,870	106,00x21,50	49,730
83,00x1,50	3,061	106,00x25,00	55,430
83,00x12,00	21,340	108,00x1,60	4,263
84,00x2,00	4,106	108,00x2,00	5,308
85,00x2,00	4,157	108,00x2,60	6,862
85,00x2,50	5,165	108,00x2,90	7,648
85,00x9,00	18,720	108,00x3,00	7,890
85,00x15,00	28,740	108,00x3,20	8,397
85,00x20,00	35,580	108,00x3,60	9,411
88,90x1,60	3,498	108,00x4,00	10,417
88,90x2,00	4,352	108,00x5,00	12,896
88,90x2,30	4,987	112,00x11,00	30,410
112,00x16,00	42,050	150,00x12,50	47,050
112,00x20,50	51,340	150,00x19,00	68,130
112,00x24,50	58,680	150,00x22,00	77,080
114,30x2,00	5,624	150,00x27,50	92,210
114,30x2,11	5,927	150,00x35,00	110,180
114,30x2,30	6,450	153,00x1,50	5,730
114,30x2,60	7,272	154,00x2,00	7,620
114,30x3,05	8,496	155,00x2,50	9,610
114,30x3,20	8,902	156,00x3,00	11,800
114,30x3,60	9,979	159,00x2,00	7,910
114,30x4,00	11,048	159,00x2,50	9,860
4" 4,50	12,372	159,00x3,00	11,800
4" 6,02	16,322	159,00x4,00	15,525
4" 8,00	21,300	159,00x4,50	17,409
4" 8,56	22,665	159,00x6,30	24,089
4" 13,49	34,070	159,00x8,00	30,260
4" 16,00	39,400	159,00x10,00	37,330
118,00x11,50	33,520	160,00x14,00	55,950
118,00x14,00	39,860	160,00x19,00	73,330
118,00x19,00	51,490	160,00x24,00	89,340
118,00x23,50	60,790	168,28x3,40	14,040
118,00x27,50	68,120	168,28x7,11	28,710
125,00x12,50	38,490	168,28x10,97	43,230
125,00x17,50	51,500	168,30x2,00	8,390
125,00x22,50	63,130	168,30x2,60	10,788
125,00x27,00	72,430	6" 3,00	12,500
127,00x4,00	12,330	6" 4,50	18,460
128,00x1,50	4,780	6" 5,10	20,450
129,00x2,00	6,400	6" 7,10	28,670
129,00x3,00	7,345	6" 10,00	39,650
132,00x13,00	42,350	6" 18,26	68,630
132,00x17,00	53,510	170,00x15,00	63,640
132,00x21,00	63,810	170,00x20,00	82,120
132,00x26,00	75,440	170,00x26,00	102,480
132,00x30,50	84,740	170,00x30,00	114,970
133,00x2,00	6,620	180,00x15,00	67,750
133,00x2,50	8,220	180,00x20,00	87,590
133,00x3,00	9,766	180,00x27,50	114,790
133,00x4,00	12,921	180,00x40,00	153,290
133,00x7,10	22,390	190,00x15,00	71,850
133,00x8,00	25,050	190,00x20,00	93,070
133,00x10,00	30,810	190,00x29,00	127,800
139,70x2,00	6,940	190,00x42,00	170,150
139,70x2,60	8,926	200,00x20,00	98,540
139,70x3,00	10,269	200,00x25,00	119,760
139,70x4,00	13,592	200,00x30,00	139,600
5" 5,00	16,864	204,00x2,00	10,200
5" 8,00	26,390	205,00x2,50	12,800
141,30x6,55	22,100	206,00x3,00	16,100
150,00x10,00	35,070	212,00x16,00	85,840
212,00x21,00	109,790	255,00x2,50	15,900
212,00x41,00	191,910	256,00x3,00	19,005
216,00x2,00	10,800	267,00x3,00	20,000
216,00x3,00	16,100	273,00x3,00	26,282
219,08x8,18	43,220	273,00x4,00	26,943
219,10x2,00	10,900	304,00x2,00	15,200
219,10x2,50	13,700	305,00x2,50	19,100
219,10x3,00	16,300	306,00x3,00	22,900
219,10x4,00	21,905	318,00x3,00	23,800
8" 5,00	26,800	323,90x3,00	24,106
8" 6,30	33,580	323,90x4,00	32,041
8" 10,00	66,020	323,90x5,00	39,962
224,00x22,00	121,640	12" 6,00	47,761
224,00x42,00	209,240	355,00x2,50	22,300
236,00x23,00	134,100	356,00x3,00	26,700
236,00x43,00	227,170	405,00x2,50	25,400
244,50x10,00	58,740	406,00x3,00	30,500
250,00x25,00	153,970	506,00x3,00	38,000
254,00x2,00	12,700	606,00x3,00	45,00
